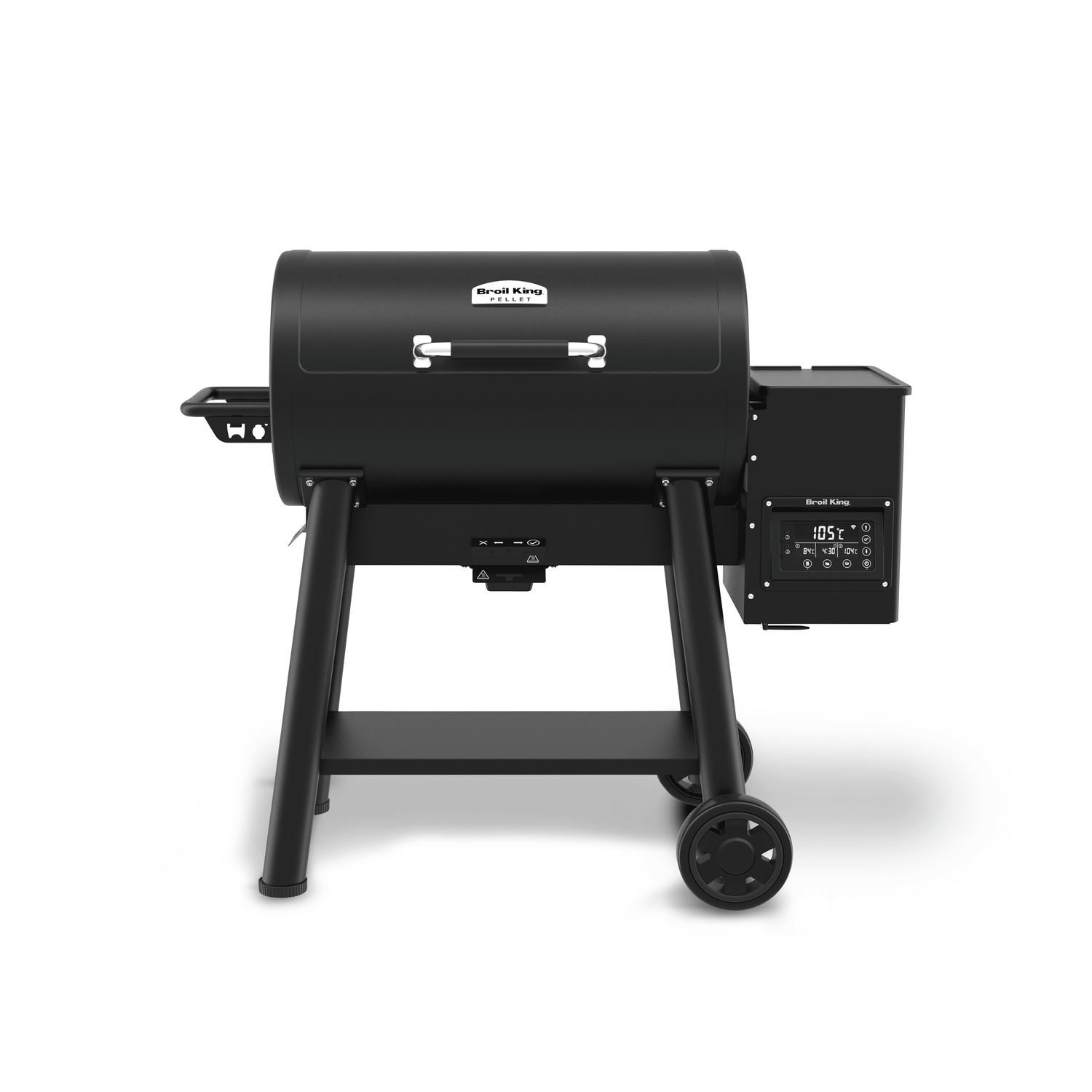

Alle Ersatzteile für Crown Pellet 500

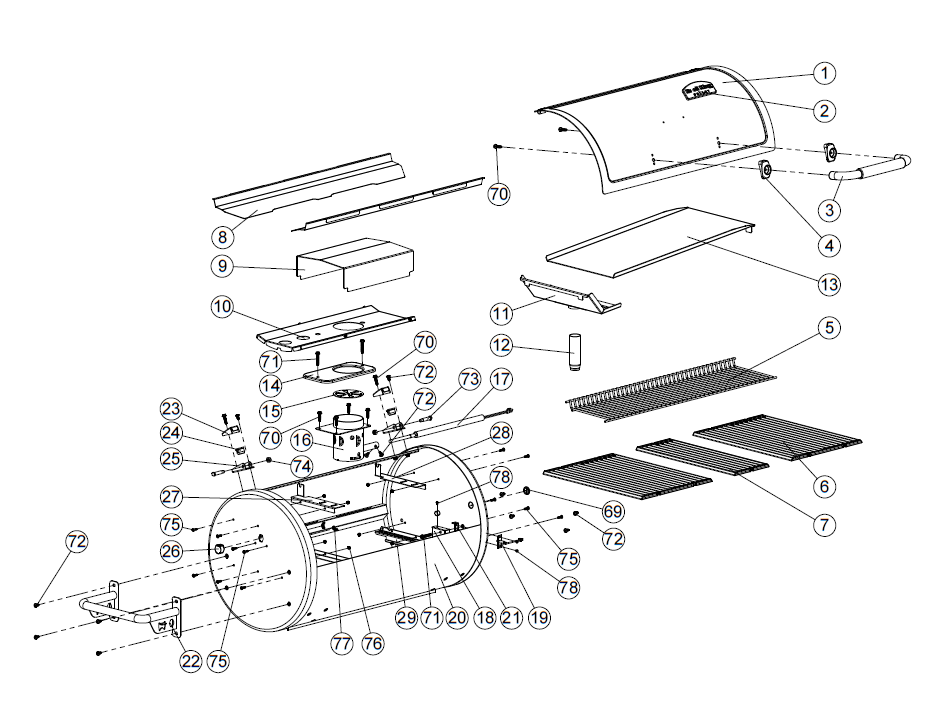

| Pos | Artikelbeschreibung | Artikelnummer | Anzahl 494055EU |
|---|---|---|---|
| 1 | LID-WELDED ASSEMBLY-PELLET 550 | 46550-01 | - |
| 1 | LID-WELDED ASSEMBLY-PELLET 440 | 46440-01 | 1 |
| 2 | NAMEPLATE- PELLET | 44599-30BK | 1 |
| 3 | HANDLE-LID ASSEMBLY | 31106-13A | 1 |
| 4 | HANDLE SEAT | 44009-94 | 2 |
| 5 | GRID-WARMING RACK-PELLET 550 | 49005-99 | 1 |
| 5 | GRID-WARMING RACK-PELLET 440 | 49004-99 | - |
| 6 | CAST COOKING GRID | 52002-981 | 2 |
| 7 | CAST COOKING GRID | 52001-981 | 1 |
| 8 | GUIDE PLATE-PELLET 625 | 45305-25 | 2 |
| 8 | GUIDE PLATE-PELLET 500 | 45304-25 | - |
| 9 | SHIELD-RADIATION-PELLET | 45304-23 | 1 |
| 10 | HEAT SHIELD-PELLET 625 | 45305-85A | 1 |
| 11 | GREASE TRAY-WELDED ASSEMBLY | 45305-78A | 1 |
| 12 | GREASE TUBE | 45305-79 | 1 |
| 13 | GREASE TRAY-PELLET 625 | 45305-77 | 1 |
| 13 | GREASE TRAY-PELLET 500 | 45304-77 | - |
| 14 | SUPPORT-BURNPOT | 45304-11 | 1 |
| 15 | DAMPER-BURNPOT | 45303-67A | 1 |
| 16 | BURNPOT-WELDED ASSEMBLY | 45303-10A | 1 |
| 17 | HOT ROD-PELLET(CE) | 66440-99 | 1 |
| 18 | PROBE BOX-PELLET 500 | 49303-14 | 1 |
| 19 | PROBE-PELLET | 65303-12 | 1 |
| 20 | FIREBOX-WELDED ASSEMBLY-PELLET 550 | 46550-11A | - |
| 20 | FIREBOX-WELDED ASSEMBLY-PELLET 440 | 49440-11A | 1 |
| 21 | BRACKET-PROBE INNER | 45303-34 | 1 |
| 22 | HANDLE-WELDED ASSEMBLY-PELLET | 46440-80A | 1 |
| 23 | CAP-LID BRACKET | 64302-33 | 2 |
| 24 | BRACKET-BUFFER-LID | 64302-24 | 2 |
| 25 | BRACKET-LID HINGE | 64302-23 | 2 |
| 26 | CAP-ROTISSERIE | 49302-26 | 1 |
| 27 | BRACKET-WARMING RACK LH | 49303-16 | 1 |
| 28 | BRACKET-WARMING RACK RH | 49303-17 | 1 |
| 29 | BRACKET-GREASE TRAY RH 500 | 45305-74 | 2 |
| 30 | AUGER ENCLOSURE-WELDED ASSEMBLY-PELLET 625 | 45303-04A | - |
| 30 | AUGER ENCLOSURE-WELDED ASSEMBLY-PELLET 500 | 45306-04A | 1 |
| 31 | BRACKET-AUGER MOTOR | 46440-42 | 1 |
| 32 | AUGER-PELLET 550 | 46550-46 | - |
| 32 | AUGER-PELLET 440 | 46440-46 | 1 |
| 33 | COLLAR-AUGER-PELLET | 45304-90 | 1 |
| 34 | AUGER MOTOR-PELLET(CE) | 66440-95 | 1 |
| 35 | COVER-GREASE TRAY-PELLET | 45304-63A | 1 |
| 36 | GREASE PAN-PELLET | 50417 | 3 |
| 37 | GREASE TRAY | 49440-17 | 1 |
| 38 | BRACKET-ASH TRAY | 49303-53 | 2 |
| 39 | BASE-AGITATOR | 45304-88 | 1 |
| 40 | AGITATOR-WELDED ASSEMBLY | 45303-51A | 1 |
| 41 | ASH TRAY | 49304-51 | 1 |
| 42 | SUPPOT-HOPPER-ASSEMBLY | 49303-51A | 1 |
| 43 | FAN-PELLET(CE) | 66440-96 | 1 |
| 44 | LEG/WHEEL-WELDED ASSEMBLY | 42302-30 | 1 |
| 45 | LEG-WELDED ASSEMBLY | 42302-40 | 1 |
| 46 | LEG-WELDED ASSEMBLY | 42302-20 | 1 |
| 47 | LEG/WHEEL-WELDED ASSEMBLY | 42302-10 | 1 |
| 48 | BASE-PELLET 550 | 46550-41 | - |
| 48 | BASE-PELLET 440 | 46440-41 | 1 |
| 49 | LEVELER-LEG | 41302-33 | 2 |
| 50 | WHEEL | G01A0009 | 2 |
| 51 | CAP-WHEEL | G01CP009 | 2 |
| 52 | SINGAL RECEIVER | 45303-45A | 1 |
| 53 | PCB CONTROLLER ASSEMBLY-PELLET 440 | 46440-68A | 1 |
| 53 | PCB CONTROLLER ASSEMBLY-PELLET 550 | 46550-68A | - |
| 54 | HOPPER-WELDED ASSEMBLY | 49440-93A | 1 |
| 55 | BASE-HOPPER-PELLET | 49440-86 | 1 |
| 56 | HOPPER-MESH LID ASSEMBLY-PELLET | 46440-26A | 1 |
| 57 | LID-ASSEMBLY-HOPPER-PELLET | 46440-31A | 1 |
| 58 | PANEL-HOPPER | 46550-92A | 1 |
| 59 | WIRE-POWER CORD(CE-UK) | 66440-97 | - |
| 59 | WIRE-POWER CORD(CE-CH) | 66441-97 | - |
| 59 | WIRE-POWER CORD(CE-EU) | 66442-97 | 1 |
| 60 | BLOCK-POWER CORD(CE) | 66303-91 | 1 |
| 61 | FUEL DOOR-ASSEMBLY-PELLET | 49304-56A | 1 |
| 62 | BRACKET-WIRE-PELLET | 45304-28 | 1 |
| 63 | SUPPORT-HOPPER LID | 49440-61 | 2 |
| 64 | HINGE-HOPPER | 45306-02-2 | 4 |
| 65 | BLOCK-MEAT PROBE | 66303-93 | 2 |
| 66 | PROBE-TEMPERATURE B (PT1000) | 49301-6B | 1 |
| 67 | PROBE-TEMPERATURE (PT1000) | 45303-64 | 1 |
| 68 | STEEL GRID LIFTER | 60745 | 1 |
| 69 | BUSING-PROBE | 46440-66 | 2 |
| 70 | SCREW 1/4-20X1" | Y-12859S | 8 |
| 71 | SCREW 1/4-20X1.5" | Y-11560S | 3 |
| 72 | SCREW 1/4-20X0.5" | Y-12865S | 17 |
| 73 | HINGE-LID | 60240-13 | 2 |
| 74 | NUT-LOCKING M8x1.25 | Y-15008S | 2 |
| 75 | SCREW #10-24X0.625" | Y-29304S | 12 |
| 76 | NUT-HEX #10-24 | Y-11805 | 10 |
| 77 | WING NUT #10-24 | S21061 | 2 |
| 78 | SCREW M4X6 | C01004 | 3 |
| 79 | BOLT M4X20 | C00420 | 1 |
| 80 | NUT-LOCKING M4 | C22004 | 1 |
| 81 | SCREW M5X10 | C05010 | 2 |
| 82 | SCREW #10-24X0.625" | Y-29304S | 30 |
| 83 | SCREW-SHOULDER #10-24 | 63599-78 | 2 |
| 84 | SCREW #10-24X0.625" | Y-29304S | 4 |
| 85 | SCREW 1/4-20X1" | Y-12859S | 12 |
| 86 | NUT-LOCKING M8X1.25 | G01CH038 | 2 |
| 87 | SCREW-BUTTERFLY 1/4"-20X0.625" | Y-11698S | 2 |
| 88 | SCREW-GROUND M5X16 | C01015 | 1 |
| 89 | THRUST WASHER φ5 | C11050 | 1 |
| 90 | NUT-HEX M5 | C20005 | 1 |
| 91 | SCREW-TAPING ST4.2X9.5 | C01024 | 2 |
| 92 | SCREW-SHOULDER #10-24 | 63599-73C | 2 |
| 93 | GROUND PLATE-ASSEMBLY(CE) | 66303-38A | 1 |
| 94 | SOCKET-POWER CORD(CE) | 66303-87 | 1 |
| 95 | CLIP-POWER CORD(CE) | 66303-88 | 1 |
| 96 | CLIP-POWER CORD-BIG | 66303-92 | 1 |
| 97 | SCREW M3X10 | C50310 | 4 |
| - | HARDWARE PACK | 494051-HP | 1 |
