GEM 310 Shadow

Ersatzteile für diese Modelle
814952
814953

Du kannst auf jeden Kreis klicken und den Artikel direkt zu Deinem Warenkorb hinzufügen.

Überprüfe in der Tabelle unten, ob der Artikel zu Deiner Modellnummer passt.

Die Explosionsansichten und Artikellisten beziehen sich auf das aktuellste Modell.

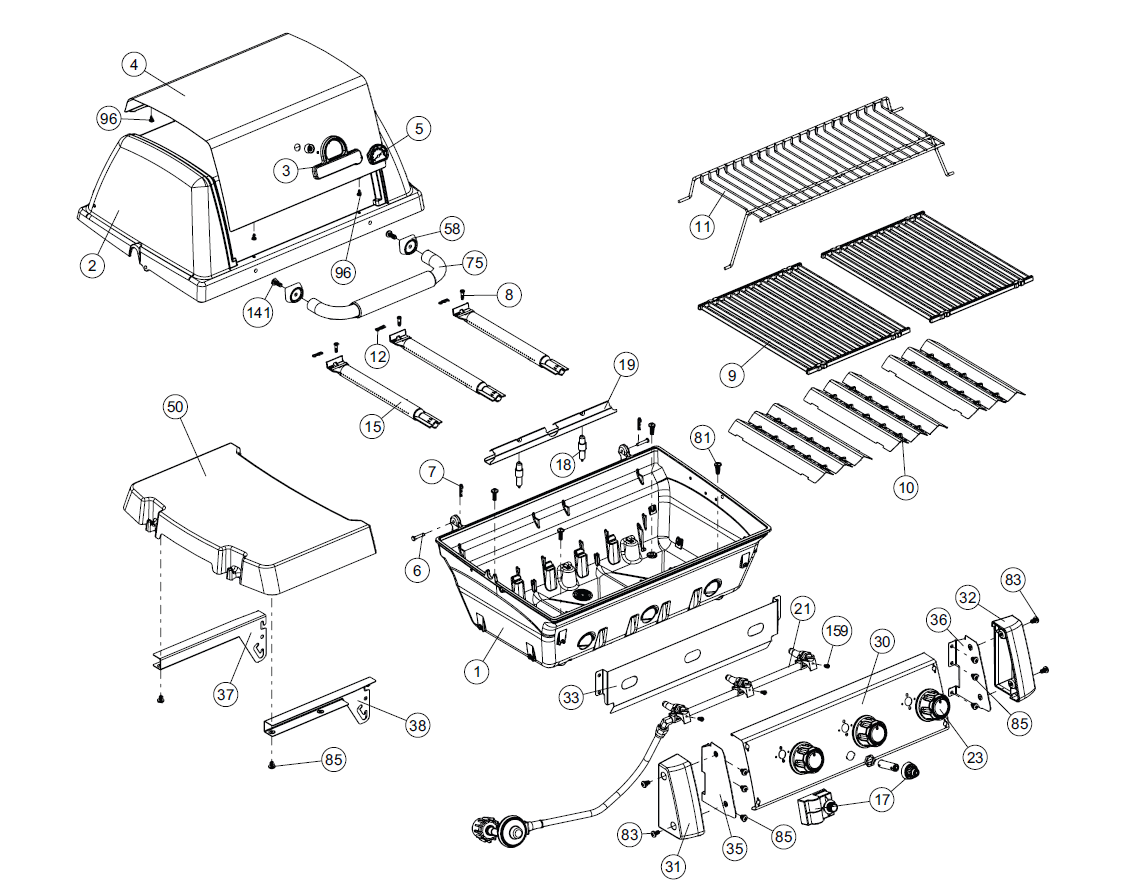

Grill Anatomy Image
SCREW 1/4 X 20X1/2 TYPE-C PHCP
EDGE CAP CONTROL COVER LHS
BRACKET CONTROL COVER LHS 320
IGNITOR ELECTRONIC DUAL +
CONTROL KNOB SMALL BLACK RESIN
SCREW PHCP 1/4-20X3/8UNC-2A +
SCREW PHCP 1/4-20X3/8UNC-2A +
SCREW 1/4 X 20X1/2 TYPE-C PHCP
EDGE CAP CONTROL COVER RHS
BRACKET CONTROL COVER RHS 320
CONTROL COVER BLACK
SCREW #8 32x3/8 PHCP TYPE C
VALVE ASSEMBLY 3V ALUM LP
HEAT SHIELD REAR GEM 3V
SCREW PHCP 1/4-20X3/8UNC-2A +
BRACKET SHELF RHS BLACK
BRACKET SHELF LHS BLACK
SCREW-PHCS 1/4-20 X 3/4 A04
FLAV R WAVE 320 SS
GRID PORTA 320 CI V +
WARMING RACK PORTACHEF 320
SHELF - SIDE - 10711-F30
HINGE PIN CLEVIS 7/64
HITCH PIN CLIP +
ELECTRODE W/WIRE +
COLLECTOR BOX 330 AC SS
BURNER TUBE PORTACHEF 320
CLIP BURNER TUBE MOUNT SS
SCREW #10-24 QUAD PAN HEAD
LID HANDLE ASSY W/GRIP
STANDOFF - PORTACHEF D HANDLE
SCREW-THCP 1/4-20 X 1-TY-C A04
SCREW 8 X 3/8 PAN HEAD
SCREW 8 X 3/8 PAN HEAD
HEAT INDICATOR PROBE SML #D +
Nameplate klein
CASTING TOP PORTACHEF 320
CASTING BOTTOM PORTACHEF 320

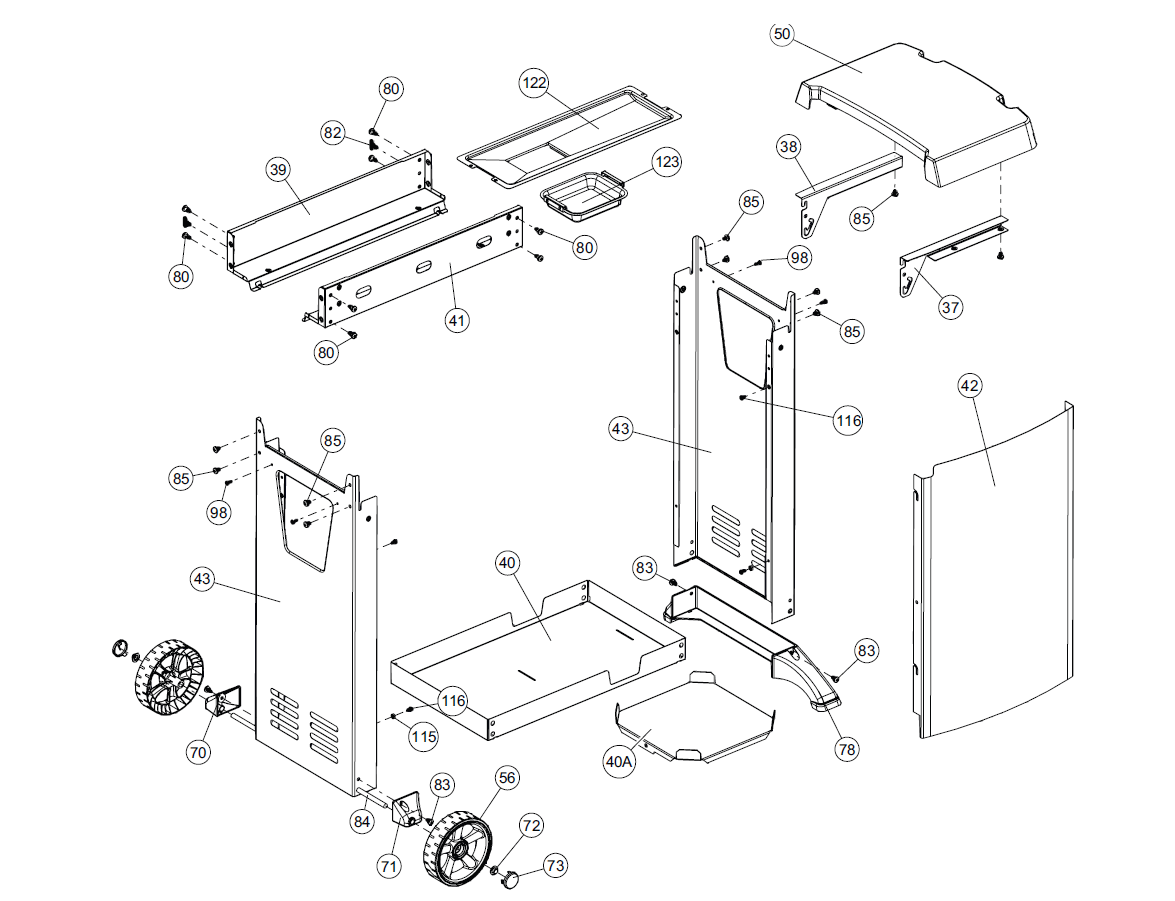

Grill Anatomy Image
SCREW PHCP #10 24x3/8
NUT HEX #10-24 JS500
FOOT - RESIN
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW 1/4 X 20X1/2 TYPE-C PHCP
SCREW 1/4 X 20X1/2 TYPE-C PHCP
WHEEL 6
PUSH NUT 3/8
BLACK WHEEL CAPS
SPACER - AXLE FRONT
AXLE PLTD ZINC 3/8 x 19 5/16
SPACER - AXLE REAR
SCREW PHCP #10 24x3/8
PANEL FRONT GEM 320 BLACK
SCREW PHCP #8 X 12 +
SCREW PHCP #8 X 12 +
BRACKET SHELF LHS BLACK
SCREW PHCP 1/4-20X3/8UNC-2A +
SCREW PHCP 1/4-20X3/8UNC-2A +
SCREW PHCP 1/4-20X3/8UNC-2A +
SCREW PHCP 1/4-20X3/8UNC-2A +
SCREW PHCP 1/4-20X3/8UNC-2A +
BRACKET SHELF RHS BLACK
SHELF - SIDE - 10711-F30
GREASE PAN - BLACK
GREASE TRAY 340/401 BLK
BRACE - FRONT BLACK
SHELF LOCK PIN
BRACE - REAR BLACK
SCREW PHCP 1/4-20X5/8
SCREW PHCP 1/4-20X5/8
SCREW PHCP 1/4-20X5/8
SCREW PHCP 1/4-20X5/8

Alle Ersatzteile für GEM 310 Shadow

Pos Artikelbeschreibung Artikelnummer Anzahl 814952 Anzahl 814953
1 CASTING BOTTOM 10909-E33 1 1
2 CASTING TOP 10473-E33 1 1
3 NAMEPLATE 10081-BK530 1 1
4 TOP CASTING INSERT 10958-E336A 1 1
5 HEAT INDICATOR 10571-5 1 1
6 HINGE PIN 32300112 2 2
7 HITCH PIN CLIP S21233 2 2
8 SCREW - BURNER Y-11544S 3 3
9 GRID 10225-T207 2 2
10 FLAV-R-WAVE™ 10222-E304 3 3
11 WARMING RACK 10225-E330 1 1
12 WIRE RETAINER S21242 3 3
15 BURNER 10390-E30 3 3
17 IGNITOR 10342-245 1 1
18 ELECTRODE 10342-E12 2 2
19 COLLECTOR BOX 52014-903A 1 1
21 CONTROL ASSEMBLY 39004-012 1 -
21 CONTROL ASSEMBLY 39004-013 - 1
23 CONTROL KNOB 52001-291A 3 3
30 CONTROL COVER 10194-E226 1 1
31 EDGE CAP 10711-E19 1 1
32 EDGE CAP 10711-E18 1 1
33 HEAT SHIELD 10184-F37 1 1
35 SUPPORT-CASTING 10184-F3211 1 1
36 SUPPORT-CASTING 10184-F3311 1 1
37 SUPPORT-SHELF 10184-E3611 2 2
38 SUPPORT-SHELF 10184-E3711 2 2
39 BRACE-REAR 10956-F3211 1 1
40 RESIN BASE 10711-E3611R 1 1
40A SUPPORT BRACKET 10184-E2911 1 1
41 BRACE-FRONT 10956-F3111 1 1
42 FRONT PANEL 10958-F336 1 1
43 SIDE PANEL 10958-F3011 2 2
50 SHELF 10711-F30 2 2
56 WHEEL 10892-608 2 2
58 BEZEL 34000-336 2 2
70 DOOR ASSEMBLY 10958-F28 1 1
71 DOOR ASSEMBLY 10958-F29 1 1
72 PUSH NUT S21420 2 2
73 WASHER 32001-151 2 2
75 LID HANDLE 31106-13A 1 1
78 LEG PLUG 10958-F26 1 1
80 SCREW - SHOULDER Y-11546 8 8
81 SCREW Y-12310 4 4
82 LOCK PIN Y-12673 2 2
83 SCREW Y-12865 8 8
84 AXLE S15174 1 1
85 SCREW Y-12855 18 18
96 SCREW S21125 4 4
98 SCREW S21124 4 4
115 SCREW Y-29307 2 2
116 SCREW Y-29304 4 4
122 GREASE TRAY 57154-901 1 1
123 GREASE PAN 52009-901 1 1
141 SCREW Y-12860 2 2
159 SCREW FOR VALVE S21136 3 3
