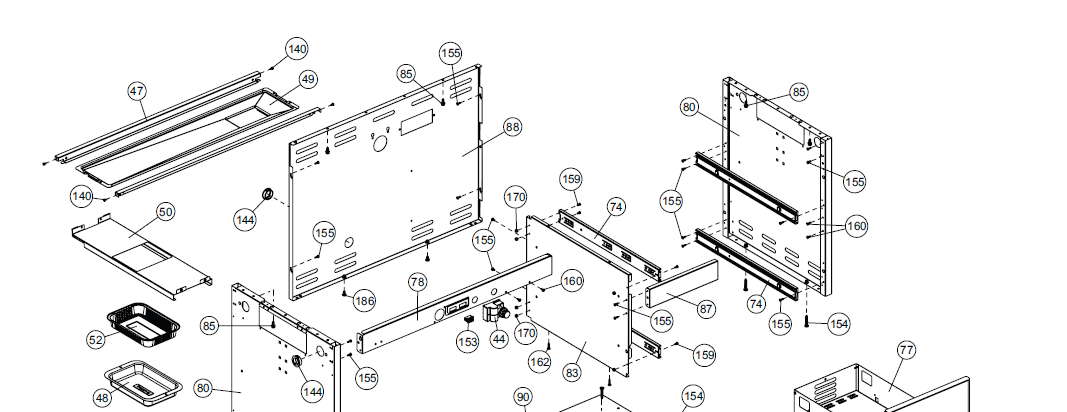

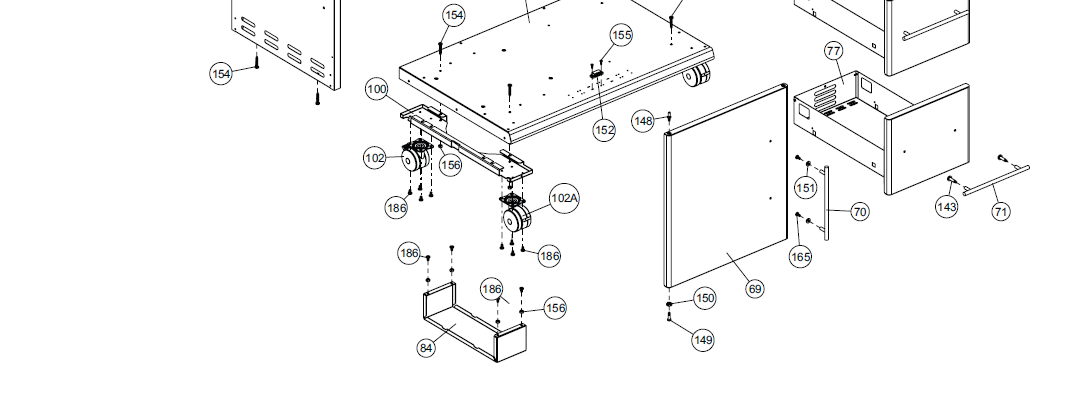

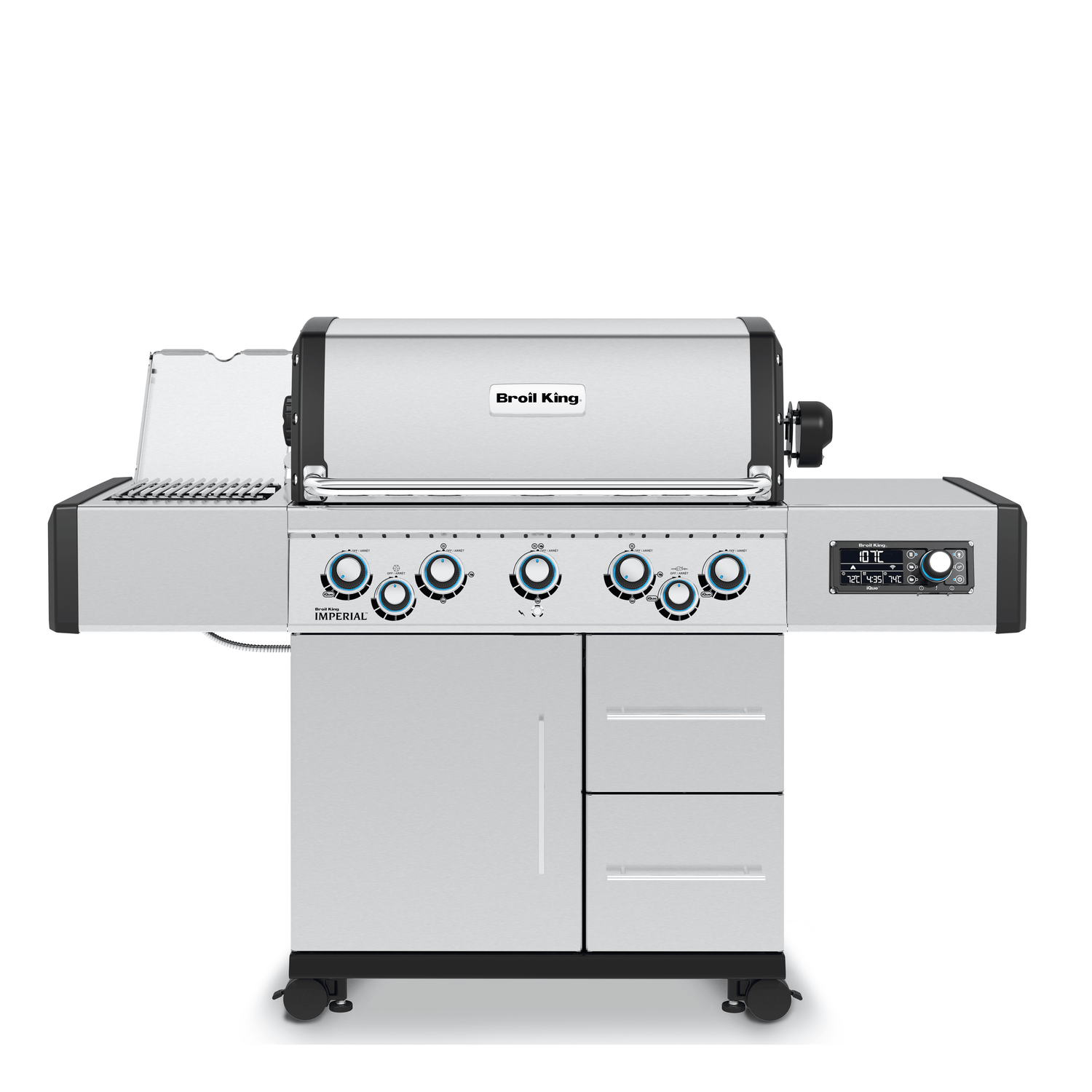

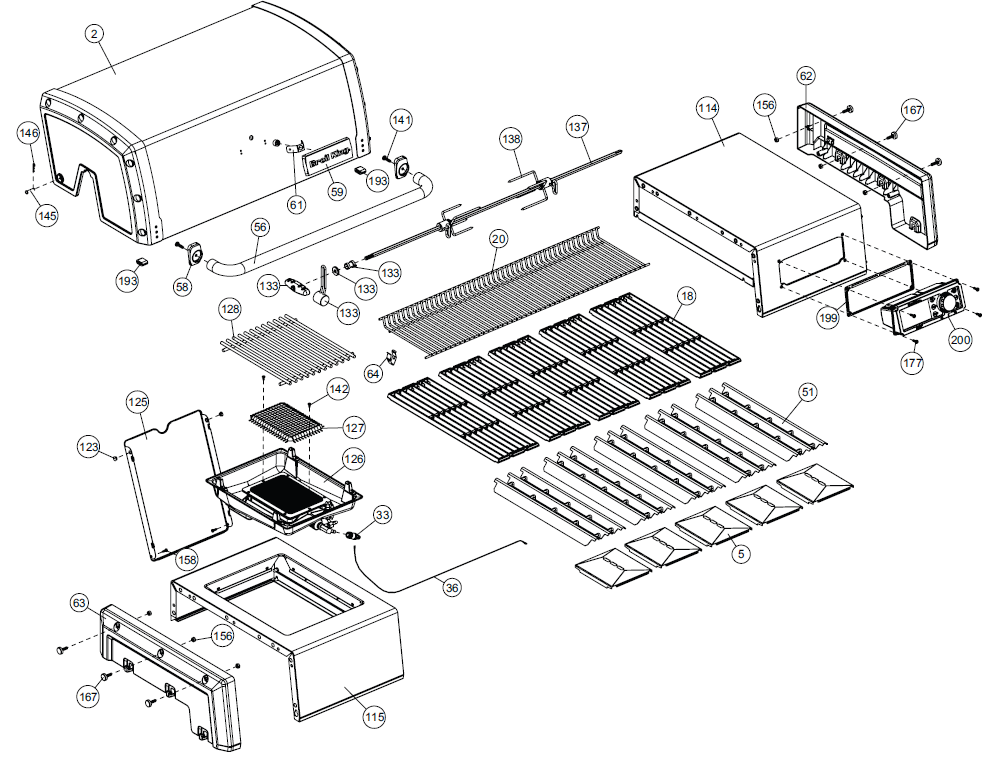

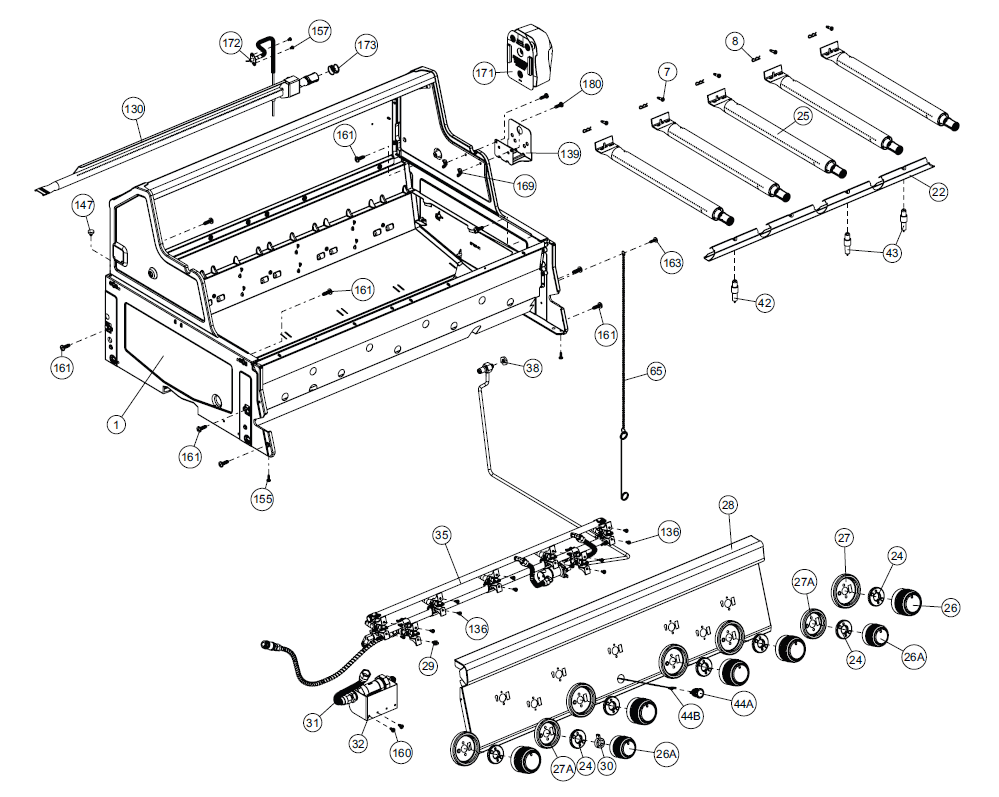

Alle Ersatzteile für Imperial QS 590 IR
| Pos | Artikelbeschreibung | Artikelnummer | Anzahl 698582 | Anzahl 698583 |
|---|---|---|---|---|
| 1 | FIREBOX ASSY 625 IQUE SS | 22006-703 | 1 | 1 |
| 2 | LID ASSEMBLY | 87006-303 | 1 | 1 |
| 5 | GREASE SHIELD | 27249-904 | 5 | 5 |
| 7 | BURNER SCREW | Y-11544S | 5 | 5 |
| 8 | BURNER MOUNT CLIP | S21242 | 5 | 5 |
| 18 | CAST STAINLESS STEEL GRID | 11249 | 5 | 5 |
| 20 | GRID - WARMING RACK | 22006-992 | 1 | 1 |
| 22 | COLLECTOR BOX ASSEMBLY | 12026-103 | 1 | 1 |
| 24 | LED ASSY iQUE SMALL | 22051-91A | 7 | 7 |
| 25 | BURNER LP | 22929-103LP | 5 | 5 |
| 25 | BURNER NG | 22929-103NG | - | - |
| 26 | CONTROL KNOB | 22001-765A | 5 | 5 |
| 26A | CONTROL KNOB | 22001-665A | 2 | 2 |
| 27 | CONTROL BEZEL | 22002-263 | 5 | 5 |
| 27A | BEZEL FLAT IR | 22001-163 | 2 | 2 |
| 28 | CONTROL COVER | 22056-493 | 1 | 1 |
| 29 | BEZEL STOP | Y-11542 | 1 | 1 |
| 30 | KNOB ADAPTER | Y-12674 | 1 | 1 |
| 31 | HOSE ASSEMBLY PIGTAIL | 10111-16B | 1 | 1 |
| 32 | HOSE ASSEMBLY | 10109-R14A | 1 | 1 |
| 33 | QUICK DISCONNECT FITTING | 10153-93 | 1 | 1 |
| 35 | VALVE ASSY | 29056-074IR | 1 | 1 |
| 36 | ELECTRODE – SIDE BURNER | 10342-T21 | 1 | 1 |
| 38 | HEX NUT | Y-11990 | 1 | 1 |
| 42 | ELECTRODE W/WIRE 22" | 10342-E22 | 1 | 1 |
| 43 | ELECTRODE | 10342-E13 | 2 | 2 |
| 44 | ELECTRODE IGNITOR | 10342-45 | 1 | 1 |
| 44A | IGNITOR HARNESS | 25070-93 | 1 | 1 |
| 44B | IGNITOR BUTTON | 25070-92 | 1 | 1 |
| 47 | GREASE RAILS | 21036-991 | 2 | 2 |
| 48 | GREASE PAN | 51009-007 | 1 | 1 |
| 49 | GREASE TRAY | 27056-901 | 1 | 1 |
| 50 | 50 | 22051-001 | 1 | 1 |
| 51 | FLAV-R-WAVE | 18433 | 5 | 5 |
| 52 | DRIP PAN SINGLE FOIL | 52004-007 | 1 | 1 |
| 56 | HANDLE | 24006-12A | 1 | 1 |
| 58 | HANDLE END CAP | 54009-936 | 2 | 2 |
| 59 | NAMEPLATE | 10081-BK614 | 1 | 1 |
| 61 | BRACKET PROBE SS | Y-12550 | 1 | 1 |
| 62 | END CAP SHELF RHS RESIN | 23189-018 | 1 | 1 |
| 63 | END CAP SHELF LHS RESIN | 23189-038 | 1 | 1 |
| 64 | BRACKET PROBE | Y-12552 | 1 | 1 |
| 65 | MATCH LIGHT - STICK | 20005-000 | 1 | 1 |
| 69 | LEFT DOOR | 27376-233AI | 1 | 1 |
| 70 | HANDLE END CAP | 21201-001 | 1 | 1 |
| 71 | HANDLE - SMALL | 21202-001 | 2 | 2 |
| 74 | DRAWER SLIDE | Y-99100 | 2 | 2 |
| 77 | DRAWER ASSEMBLY | 27165-113AI | 2 | 2 |
| 78 | TOP MAGNET-BRACKET 625 BLK | 21336-111 | 1 | 1 |
| 80 | SIDE PANEL | 21109-901R | 2 | 2 |
| 83 | DRAWER CENTER MOUNT | 21065-901R | 1 | 1 |
| 84 | BRACKET TANK BLACK 500/625/750 | 21039-301 | 1 | 1 |
| 85 | SCREW HEX WASHER HEAD #14x3/4 | S21084 | 6 | 6 |
| 87 | DRAWER SUPPORT | 21069-901 | 1 | 1 |
| 88 | PANEL - REAR | 21306-921R | 1 | 1 |
| 90 | BASE | 51096-931 | 1 | 1 |
| 100 | BRACKET – CASTOR SUPPORT | 21039-911 | 2 | 2 |
| 102 | CASTOR | 10892-23 | 2 | 2 |
| 102A | CASTOR | 10892-285 | 2 | 2 |
| 114 | SHELF | 23109-893 | 1 | 1 |
| 115 | SHELF-SIDE BURNER | 23109-853 | 1 | 1 |
| 123 | PLUG 1/2 | Y-12117 | 2 | 2 |
| 125 | COVER-SIDE BURNER | 23000-253 | 1 | 1 |
| 126 | SIDE BURNER | 18674 | 1 | 1 |
| 127 | SIDE BURNER SCREEN | 18670 | 1 | 1 |
| 128 | GRID | 23001-79 | 1 | 1 |
| 130 | BURNER ROTISSERIE | 27906-354 | 1 | 1 |
| 133 | HANDLE | S15278 | 1 | 1 |
| 136 | BUSHING | S21128S | 13 | 13 |
| 137 | SPIT ROD | S15259 | 1 | 1 |
| 138 | 4 PRONG FORKS | S15287 | 2 | 2 |
| 139 | ROTISSERIE BRACKET | 20006-000 | 1 | 1 |
| 140 | SCREW # 8 X 1/2 | S21125 | 4 | 4 |
| 141 | SCREW 1/4-20X 3/4 | Y-11559 | 2 | 2 |
| 142 | SCREW #8-32 X 7/16 | S21127S | 2 | 2 |
| 143 | M8 SHOULDER M6 TYPE D SCREW | Y-11567 | 4 | 4 |
| 144 | BUSHING | Y-12220 | 1 | 1 |
| 145 | HINGE PIN | S21235 | 2 | 2 |
| 146 | HITCH PIN CLIP | S21233 | 2 | 2 |
| 147 | LID BUMPER | Y-11231 | 2 | 2 |
| 148 | DOOR PIN | 10240-20 | 1 | 1 |
| 149 | DOOR PIN | Y-11551 | 1 | 1 |
| 150 | DOOR PIN CAP | Y-12124 | 1 | 1 |
| 151 | SCREW M8 SHOULDER | Y-12857 | 2 | 2 |
| 152 | MAGNET | Y-12222 | 1 | 1 |
| 153 | SNAP IN MAGNET | Y-12223 | 1 | 1 |
| 154 | SCREW 1/4-20 X 1-1/2 | Y-11560 | 8 | 8 |
| 155 | SCREW #8 X 1/2 | S21124 | 22 | 22 |
| 156 | NUT 1/4-20 | Y-11793 | 14 | 14 |
| 157 | SCREW #6-32 X 1/4 | Y-12835 | 2 | 2 |
| 158 | SHOULDER SCREW #8-32 | Y-12641 | 2 | 2 |
| 159 | SCREW #8-32 X 3/8 | S21136 | 6 | 6 |
| 160 | SCREW #10-24 X 3/8 | Y-29304 | 6 | 6 |
| 161 | SCREW #10-24 | Y-12310 | 10 | 10 |
| 162 | SCREW #10-24 X 3/4 | Y-29310 | 2 | 2 |
| 163 | SCREW #10-24 X 5/8 | S35094 | 1 | 1 |
| 164 | SCREW #14 X 5/8 | Y-29307 | 2 | 2 |
| 165 | SCREW M6X12MM BLK | Y-11570 | 2 | 2 |
| 166 | SCREW PHCP #10-24 X 3/4 | Y-29306 | 4 | 4 |
| 167 | BOLT CARRIAGE 1/4-20 x 1 UNC | Y-11981 | 6 | 6 |
| 169 | WING NUT | S21061 | 2 | 2 |
| 170 | NUT – 10-24 | Y-12084 | 6 | 6 |
| 171 | ROTISSERIE MOTOR | S15246 | 1 | - |
| 171 | ROTISSERIE MOTOR | S15244 | - | 1 |
| 171 | ROTISSERIE MOTOR Europe excl. UK | S15245 | - | 1 |
| 172 | ELECTRODE ASSEMBLY | S15508 | 1 | 1 |
| 173 | SPRING | S21362 | 1 | 1 |
| 177 | SCREW #10-24 x 5/8" SS | Y-29299S | 4 | 4 |
| 180 | SCREW #10 24x5/8 FLAT TOP | S35095 | 2 | 2 |
| 181 | WIRE - OVEN LIGHT | 25053-70 | 1 | 1 |
| 182 | OVEN LIGHT | 25020-71 | 2 | 2 |
| 183 | TRANSFORMER PLUG | 25080-43 | 1 | - |
| 183 | TRANSFORMER PLUG | 25080-42 | - | 1 |
| 183 | TRANSFORMER PLUG | 25080-44 | - | 1 |
| 185 | WIRE - OVEN LIGHT | 25030-72 | 1 | 1 |
| 186 | SCREW 1/4-20 X 1/2 | Y-12865 | 22 | 22 |

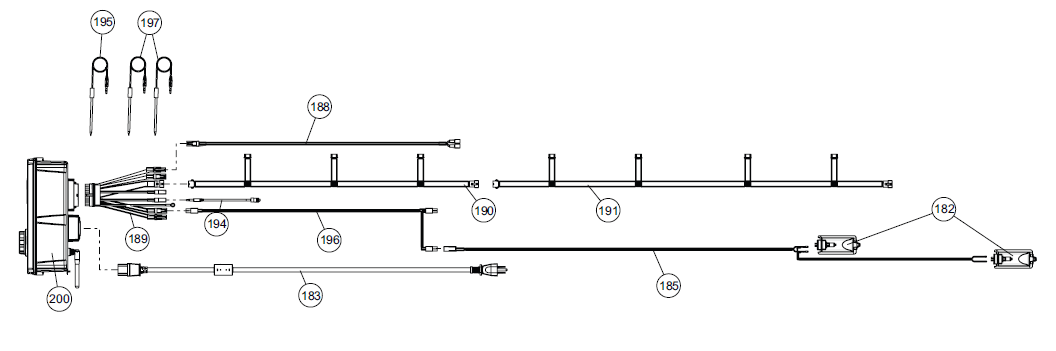

| 188 | HARNESS WIRE SOLENOID IQUE | 25051-70 | 1 | 1 |
| 189 | HARNESS WIRE CONNECTOR 22 PIN | 25080-34 | 1 | 1 |
| 190 | WIRE - LED LIGHTS | 25020-79 | 1 | 1 |
| 193 | STOP BUMPER - SILICONE | SP11-25 | 2 | 2 |
| 194 | HARNESS EXTENSION WIRE | 29305-72A | 1 | 1 |
| 195 | TEMPERATURE PROBE A 200 | 45301-951 | 1 | 1 |
| 196 | HARNESS SWITCH/BATTERY | 25050-73 | 1 | 1 |
| 197 | MEAT PROBE KIT | 42309-64A | 1 | 1 |
| 199 | 199 | 43209-88 | 1 | 1 |
| 200 | CONTROLLER KIT 90W IQUE | 43209-91A | 1 | 1 |
