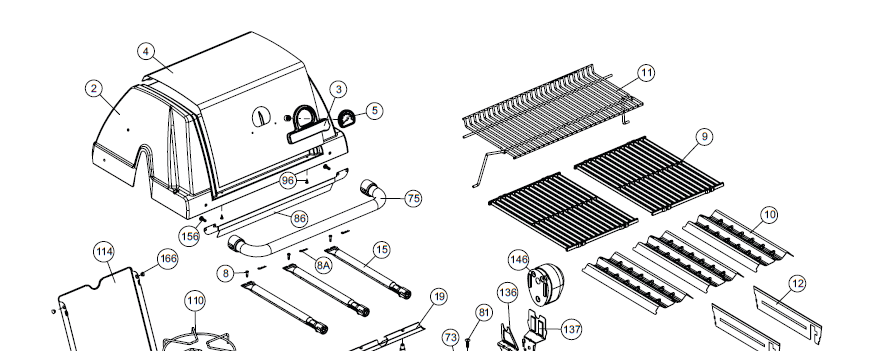

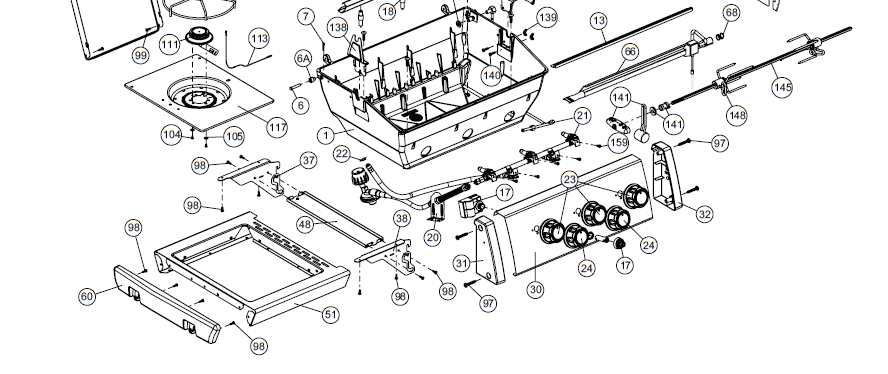

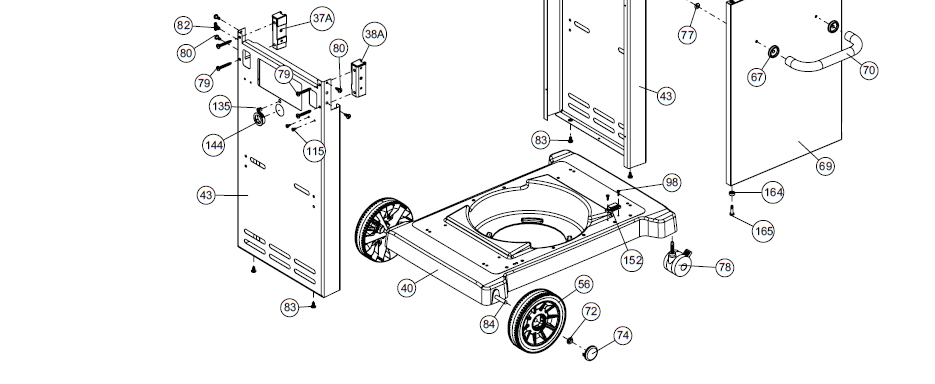

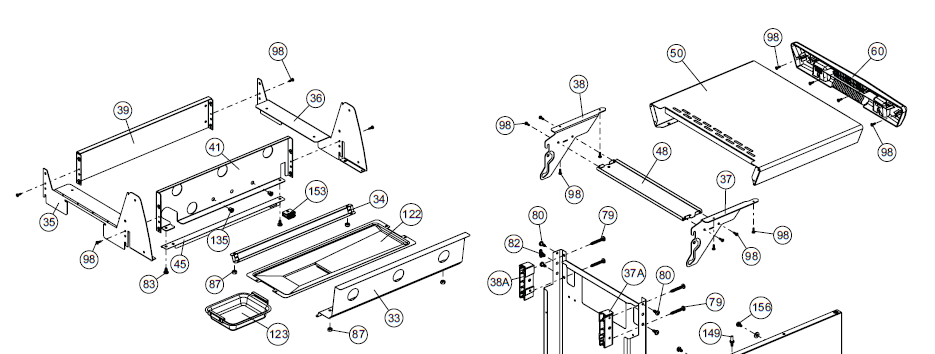

Alle Ersatzteile für Royal 390 Shadow
| Pos | Artikelbeschreibung | Artikelnummer | Anzahl 824282SDW | Anzahl Quantity 824283SDW |
|---|---|---|---|---|
| 1 | FIREBOX | 10909-E340 | 1 | 1 |
| 2 | LID ASSEMBLY | 10473-E341 | 1 | 1 |
| 3 | NAMEPLATE | 10081-BK630 | 1 | 1 |
| 4 | LID INSERT | 10958-E341A | 1 | 1 |
| 5 | HEAT INDICATOR PROBE | 10571-6 | 1 | 1 |
| 6 | HINGE PIN SIDE SHELF | 10240-15 | 2 | 2 |
| 7 | HITCH PIN CLIP | S21233 | 2 | 2 |
| 8 | BURNER SCREW | Y-11544S | 3 | 3 |
| 8A | BURNER MOUNT CLIP | S21242 | 3 | 3 |
| 9 | GRID | 10225-T342 | 2 | 2 |
| 10 | FLAV-R-WAVE | 10222-E407 | 3 | 3 |
| 11 | WARMING RACK | 10225-E346 | 1 | 1 |
| 12 | DIVIDER | 10222-E301 | 2 | 2 |
| 13 | CASTING BOSS EXTENSION | 10184-R83 | 1 | 1 |
| 15 | BURNER MAIN | 10390-E20D | 3 | - |
| 15 | BURNER MAIN | 10390-E20E | - | 3 |
| 17 | IGNITOR | 10342-247 | 1 | 1 |
| 18 | ELECTRODE | 10342-E12 | 2 | 2 |
| 19 | COLLECTOR BOX | 22024-903A | 1 | 1 |
| 20 | HOSE ASSEMBLY | 10111-16A | 1 | 1 |
| 21 | VALVE ASSY | 29004-072 | 1 | - |
| 21 | VALVE ASSY | 29004-073 | - | 1 |
| 22 | HAIRPIN COTTER SIDE BURNER | Y-11230 | 1 | 1 |
| 23 | KNOB | 52002-298A | 3 | 3 |
| 24 | CONTROL KNOB | 52001-298A | 2 | 2 |
| 30 | CONTROL COVER | 10194-F1916 | 1 | 1 |
| 31 | EDGE CAP - LH |
10711-E34 | 1 | 1 |
| 32 | EDGE CAP - RH |
10711-E33 | 1 | 1 |
| 33 | RADIATION SHIELD | 10184-E96 | 1 | 1 |
| 34 | SUPPORT GREASE TRAY | 10184-E97 | 1 | 1 |
| 35 | SUPPORT-CASTING-LEFT | 10184-E5011 | 1 | 1 |
| 36 | SUPPORT-CASTING-RIGHT | 10184-E5111 | 1 | 1 |
| 37 | SUPPORT-SIDE SHELF-LEFT | 11184-E4511 | 2 | 2 |
| 37A | SHELF SUPPORT BRACKET LHS | 10184-E62 | 2 | 2 |
| 38 | SUPPORT-SIDE SHELF-RIGHT | 11184-E4411 | 2 | 2 |
| 38A | SHELF SUPPORT BRACKET RHS | 10184-E63 | 2 | 2 |
| 39 | BRACE-REAR | 10956-E4211 | 1 | 1 |
| 40 | PEDESTAL RESIN BASE | 10958-E71 | 1 | 1 |
| 41 | BRACE-FRONT | 10956-E3111 | 1 | 1 |
| 43 | SIDE PANEL | 10958-E7611 | 2 | 2 |
| 45 | BRACKET DOOR CATCH | 10184-E9811 | 1 | 1 |
| 48 | SHELF BRACKET | 10184-E7211 | 2 | 2 |
| 50 | SHELF - SIDE | 10711-E8511 | 1 | 1 |
| 51 | 51 | 10711-E8711 | 1 | 1 |
| 56 | WHEEL | 10892-931A | 2 | 2 |
| 60 | EDGE CAP SIDE SHELF | 10711-E49 | 2 | 2 |
| 66 | BURNER TUBE | S13006AE | 1 | 1 |
| 67 | DOOR HANDLE BEZEL | 21070-13 | 2 | 2 |
| 68 | REAR BURNER SPRING | S21362 | 1 | 1 |
| 69 | DOOR ASSEMBLY | 10958-E48AB | 1 | 1 |
| 70 | HARDWARE BAG | 10070-E13 | 1 | 1 |
| 72 | PUSH NUT | S21420 | 2 | 2 |
| 73 | NUT HEX | Y-11990 | 1 | 1 |
| 74 | WHEEL CAP | 32002-249 | 2 | 2 |
| 75 | LID HANDLE | 24009-12AB | 1 | 1 |
| 77 | WASHER | Y-12857 | 2 | 2 |
| 78 | CASTER | 10892-15 | 2 | 2 |
| 79 | SCREW | Y-11563 | 8 | 8 |
| 80 | SCREW | Y-11546 | 8 | 8 |
| 81 | SCREW-THCP | Y-12860 | 4 | 4 |
| 82 | SHELF LOCK PIN | Y-12673 | 2 | 2 |
| 83 | SCREW | Y-12865 | 6 | 6 |
| 84 | AXLE | S15165 | 1 | 1 |
| 86 | HEAT SHIELD | 10184-E09 | 1 | 1 |
| 87 | NUT | Y-11793 | 4 | 4 |
| 96 | SCREW | S21125 | 4 | 4 |
| 97 | SCREW | Y-11545 | 4 | 4 |
| 98 | SCREW | S21124 | 32 | 32 |
| 99 | SCREW |
Y-12641 | 2 | 2 |
| 104 | SCREW PHCP | Y-12835 | 2 | 2 |
| 105 | WASHER | Y-12853 | 2 | 2 |
| 110 | SIDE BURNER GRID | 23009-951 | 1 | 1 |
| 111 | BURNER SIDE 50M GERMANY | 10390-E10D | 1 | - |
| 111 | BURNER SIDE EUROPE | 10390-E10E | - | 1 |
| 113 | WIRE ELECTRODE | 10342-T16 | 1 | 1 |
| 114 | SIDE BURNER LID | 23000-2511 | 1 | 1 |
| 115 | SCREW PHCP |
Y-29304 | 2 | 2 |
| 117 | SIDE BURNER BODY BASE | 23000-271 | 1 | 1 |
| 122 | GREASE TRAY | 57154-901 | 1 | 1 |
| 123 | GREASE PAN | 52009-901 | 1 | 1 |
| 135 | BUSHING | Y-12119 | 3 | 3 |
| 136 | BRACKET ROTIS RIGHT | 11184-E341 | 1 | 1 |
| 137 | BRACKET ROTIS MOTOR | 10184-E421 | 1 | 1 |
| 138 | BRACKET ROTIS LEFT | 11184-E331 | 1 | 1 |
| 139 | WING NUT | S21061 | 2 | 2 |
| 140 | SCREW PHCP | Y-29306 | 2 | 2 |
| 141 | ROTISSERIE HARDWARE PACK | S15278 | 1 | 1 |
| 144 | S/B BUSHING | Y-12220 | 1 | 1 |
| 145 | SPIT ROD ROTISSERIE | S15264 | 1 | 1 |
| 146 | ELECTRIC MOTOR | S15246 | 1 | 1 |
| 148 | ROTIS SPIT FORK | S15287 | 2 | 2 |
| 149 | DOOR PIN | 10240-20 | 2 | 2 |
| 152 | MAGNET | Y-12222 | 1 | 1 |
| 153 | SNAP IN MAGNET | Y-12223 |
2 | 2 |
| 156 | SCREW | Y-12310 | 4 | 4 |
| 159 | SCREW #8 32x3/8 | S21136 | 5 | 5 |
| 164 | DOOR PIN CAP BOTTOM | Y-12124 | 1 | 1 |
| 165 | SCREW 1/4-20 | Y-11551 | 1 | 1 |
| 166 | ELECTRODE ASSEMBLY | Y-12117 | 2 | 2 |
