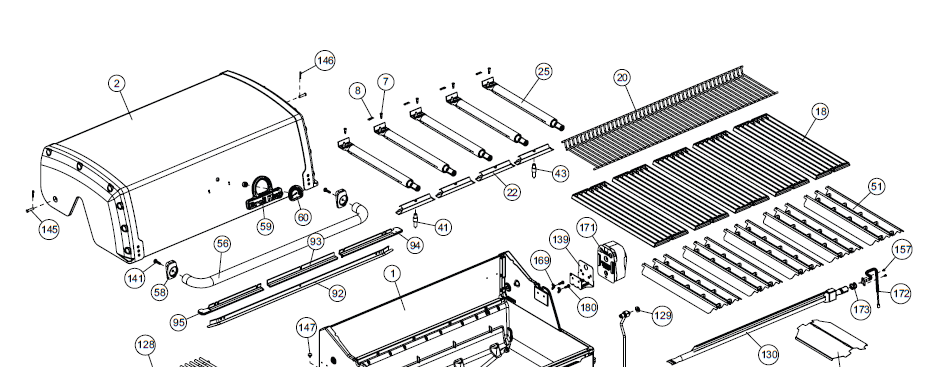

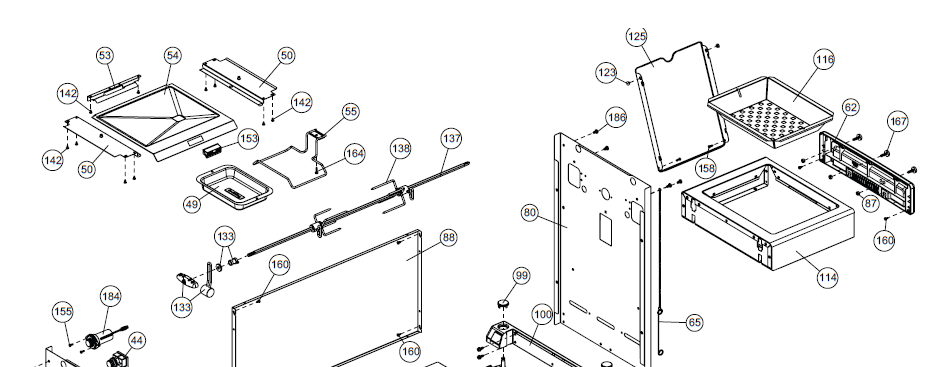

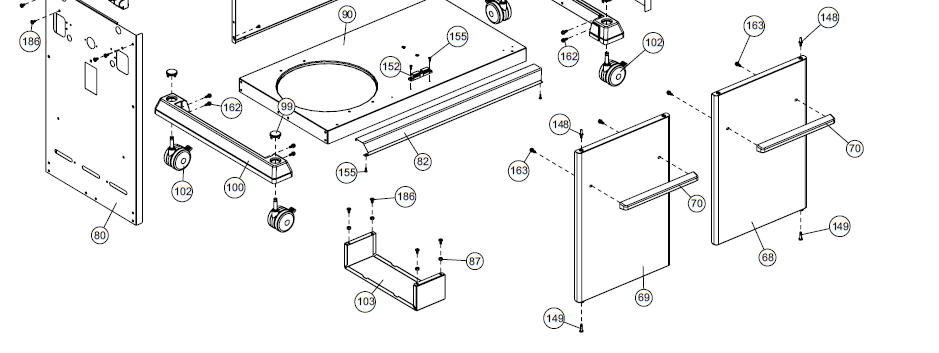

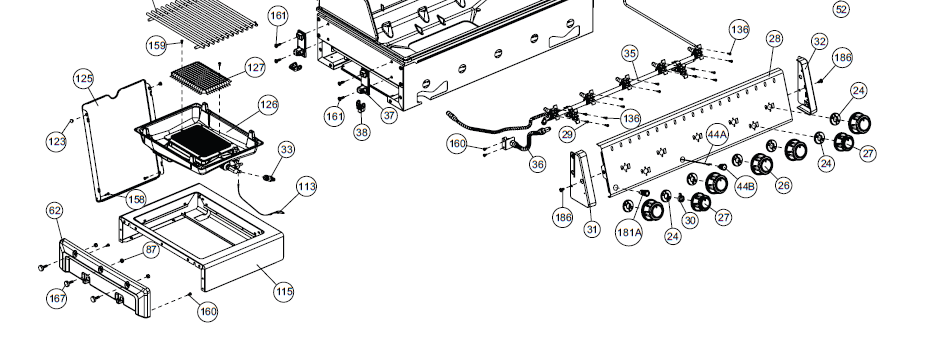

Alle Ersatzteile für Baron S 590 IRX
| Pos | Artikelbeschreibung | Artikelnummer | Anzahl 678382 | Anzahl 678383 |
|---|---|---|---|---|
| 1 | FIREBOX | 42326-001 | 1 | 1 |
| 2 | LID ASSEMBLY | 66006-404A | 1 | 1 |
| 7 | BURNER SCREW | Y-11544S | 5 | 5 |
| 8 | BURNER MOUNT CLIP | S21242 | 5 | 5 |
| 18 | CAST STAINLESS STEEL GRID | 52005-281 | 5 | 5 |
| 20 | GRID - WARMING RACK | 52006-992 | 1 | 1 |
| 22 | COLLECTOR BOX ASSEMBLY | 22026-903A | 1 | 1 |
| 24 | LED ASSY iQUE SMALL | 22051-91A | 7 | 7 |
| 25 | BURNER LP | 52929-104D | 5 | - |
| 26 | BURNER EU | 52929-104E | - | 5 |
| 26 | CONTROL KNOB | 22602-711A | 5 | 5 |
| 27 | CONTROL BEZEL | 22601-711A | 2 | 2 |
| 28 | CONTROL COVER | 52106-894 | 1 | 1 |
| 29 | SCREW | Y-11544S | 1 | 1 |
| 30 | ADAPTOR | Y-12674 | 1 | 1 |
| 31 | END CAP CONTROL LHS COVER | 52029-918 | 1 | 1 |
| 32 | END CAP CONTROL RHS COVER | 52029-938 | 1 | 1 |
| 33 | QUICK CONNECT FITTING | 10153-93 | 1 | 1 |
| 35 | VALVE ASSY 550 | 59806-072IR | 1 | - |
| 35 | VALVE ASSY 550 | 59806-073IR | - | 1 |
| 36 | HOSE ASSEMBLY PIGTAIL | 10111-16A | 1 | 1 |
| 37 | BRACKET SHELF SUPPORT | 53139-908 | 4 | 4 |
| 38 | CLIP SHELF LOCK | Y-12620 | 4 | 4 |
| 41 | ELECTRODE W/WIRE | 10342-E13 | 1 | 1 |
| 43 | ELECTRODE | 10342-E38 | 1 | 1 |
| 44 | IGNITOR ELECTRONIC QUADRUPLE | 10342-44 | 1 | 1 |
| 44A | IGNITOR HARNESS | 25070-925 |
1 | 1 |
| 44B | IGNITOR BUTTON | 25070-93 | 1 | 1 |
| 49 | GREASE PAN | 51009-007 | 1 | 1 |
| 50 | GREASE RAIL | 55056-104R | 2 | 2 |
| 51 | FLAV-R-WAVE | 52009-104 | 5 | 5 |
| 52 | GREASE PAN | 52649-104 | 1 | 1 |
| 53 | 53 | 52059-204 | 1 | 1 |
| 54 | 54 | 52059-004A | 1 | 1 |
| 55 | 55 | 52039-014 | 1 | 1 |
| 56 | HANDLE | 24006-12A | 1 | 1 |
| 58 | HANDLE END CAP | 54009-936 | 2 | 2 |
| 59 | NAMEPLATE | 10081-BK630 | 1 | 1 |
| 60 | HEAT INDICATOR PROBE | 10571-6 | 1 | 1 |
| 62 | END CAP SHELF RHS RESIN | 53409-138 | 2 | 2 |
| 65 | MATCH LIGHT - STICK | 20005-000 | 1 | 1 |
| 68 | DOOR ASSY 625 IR RHS BLK | 51276-214A | 1 | 1 |
| 69 | DOOR ASSY 625 IR LHS BLK | 51276-234A | 1 | 1 |
| 70 | HANDLE END CAP | 51476-138 | 2 | 2 |
| 80 | SIDE PANEL | 41189-1011A | 2 | 2 |
| 82 | TRIM BASE | 51606-104 | 1 | 1 |
| 87 | BRACKET TANK BLACK 500/625/750 | Y-11793 | 10 | 10 |
| 88 | PANEL - REAR | 51386-2011 | 1 | 1 |
| 90 | BASE | 51626-1311 | 1 | 1 |
| 92 | 92 | 64036-104 | 1 | 1 |
| 93 | 93 | 54006-10 | 1 | 1 |
| 94 | 94 | 64049-11 | 1 | 1 |
| 95 | 95 | 64049-13 | 1 | 1 |
| 99 | BLACK WHEEL CAPS | 32001-151 | 4 | 4 |
| 100 | BRACKET – CASTOR SUPPORT | 51639-108 | 2 | 2 |
| 102 | CASTOR | 10892-286 | 4 | 4 |
| 103 | BRACKET TANK | 21039-3011 | 1 | 1 |
| 113 | WIRE ELECTRODE | 10342-T14 | 1 | 1 |
| 114 | SHELF ASSY | 43150-654 | 1 | 1 |
| 115 | SHELF-SIDE BURNER | 53150-654 | 1 | 1 |
| 116 | SHELF INSERT WOK | 69826 | 1 | ! |
| 123 | PLUG 1/2 | Y-12117 | 4 | 4 |
| 125 | COVER-SIDE BURNER | 23000-253 | 1 | 1 |
| 126 | INFRARED SIDE BURNER | 18672 | 1 | - |
| 126 | INFRARED SIDE BURNER | 18673 | - | 1 |
| 127 | INFRARED SIDE BURNER SCREEN | 18670 | 1 | 1 |
| 128 | GRID | 23001-79 | 1 | 1 |
| 129 | NUT | Y-11990 | 1 | 1 |
| 130 | BURNER ROTISSERIE | 27906-354 | 1 | 1 |
| 133 | HANDLE | S15278 | 1 | 1 |
| 136 | SCREW | S21128S | 13 | 13 |
| 137 | SPIT ROD | S15259 | 1 | 1 |
| 138 | 4 PRONG FORKS | S15287 | 2 | 2 |
| 139 | ROTISSERIE BRACKET | 20006-000 | 1 | 1 |
| 141 | SCREW 1/4-20X 3/4 | Y-11559 | 2 | 2 |
| 142 | SCREW | S21125 | 10 | 10 |
| 145 | HINGE PIN | S21235 | 2 | 2 |
| 146 | HITCH PIN CLIP | S21233 | 2 | 2 |
| 147 | LID BUMPER | Y-11231 | 2 | 2 |
| 148 | DOOR PIN | 10240-20 | 2 | 2 |
| 149 | DOOR PIN | Y-11551 | 2 | 2 |
| 152 | MAGNET | Y-12229 | 1 | 1 |
| 153 | SNAP IN MAGNET | Y-12213A | 1 | 1 |
| 155 | SCREW #8 X 1/2 | S21124 | 6 | 6 |
| 157 | SCREW #6-32 X 1/4 | Y-12835 | 2 | 2 |
| 158 | SHOULDER SCREW #8-32 | Y-12641 | 4 | 4 |
| 159 | SCREW | S21127S | 2 | 2 |
| 160 | SCREW #10-24 X 3/8 | Y-29304 | 10 | 10 |
| 161 | SCREW #10-24 | Y-12310 | 12 | 12 |
| 162 | SCREW HEX WASHER | S21088 | 8 | 8 |
| 163 | SCREW | S21084 | 4 | 4 |
| 164 | SCREW PHCP | Y-29306 | 1 | 1 |
| 167 | BOLT CARRIAGE 1/4-20 x 1 UNC | Y-11981 | 6 | 6 |
| 169 | WING NUT | S21061 | 2 | 2 |
| 171 | ROTISSERIE MOTOR | S15246 | 1 | - |
| 172 | ELECTRODE ASSEMBLY | S15509 | 1 | 1 |
| 173 | SPRING | S21362 | 1 | 1 |
| 180 | SCREW #10 24x5/8 FLAT TOP | S35095 | 2 | 2 |

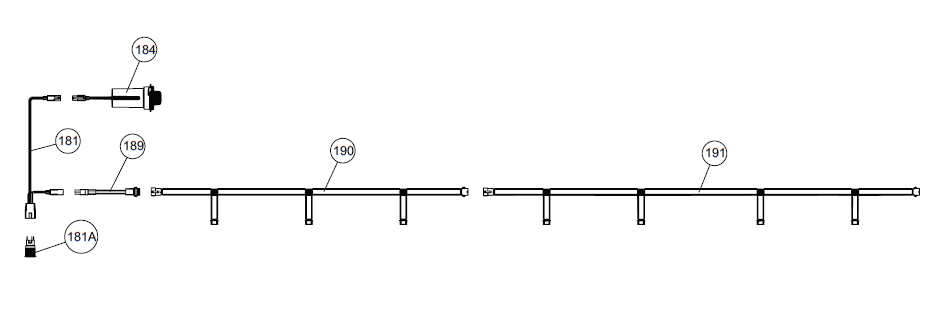

| 181 | HARNESS SWITCH | 25030-73 | 1 | 1 |
| 181A | LIGHT SWITCH | 25070-95 | 1 | 1 |
| 184 | BATTERY PACK | 25080-80 | 1 | 1 |
| 186 | SCREW 1/4-20 X 1/2 | Y-12865 | 14 | 14 |
| 189 | LED WIRE ADAPTER | 25020-95 | 1 | 1 |
| 190 | WIRE - LED LIGHTS | 25020-79 | 1 | 1 |
| 191 | HARNESS WIRE | 25020-81 | 1 | 1 |
